Commercial Rigging |
Specifications |
|
|

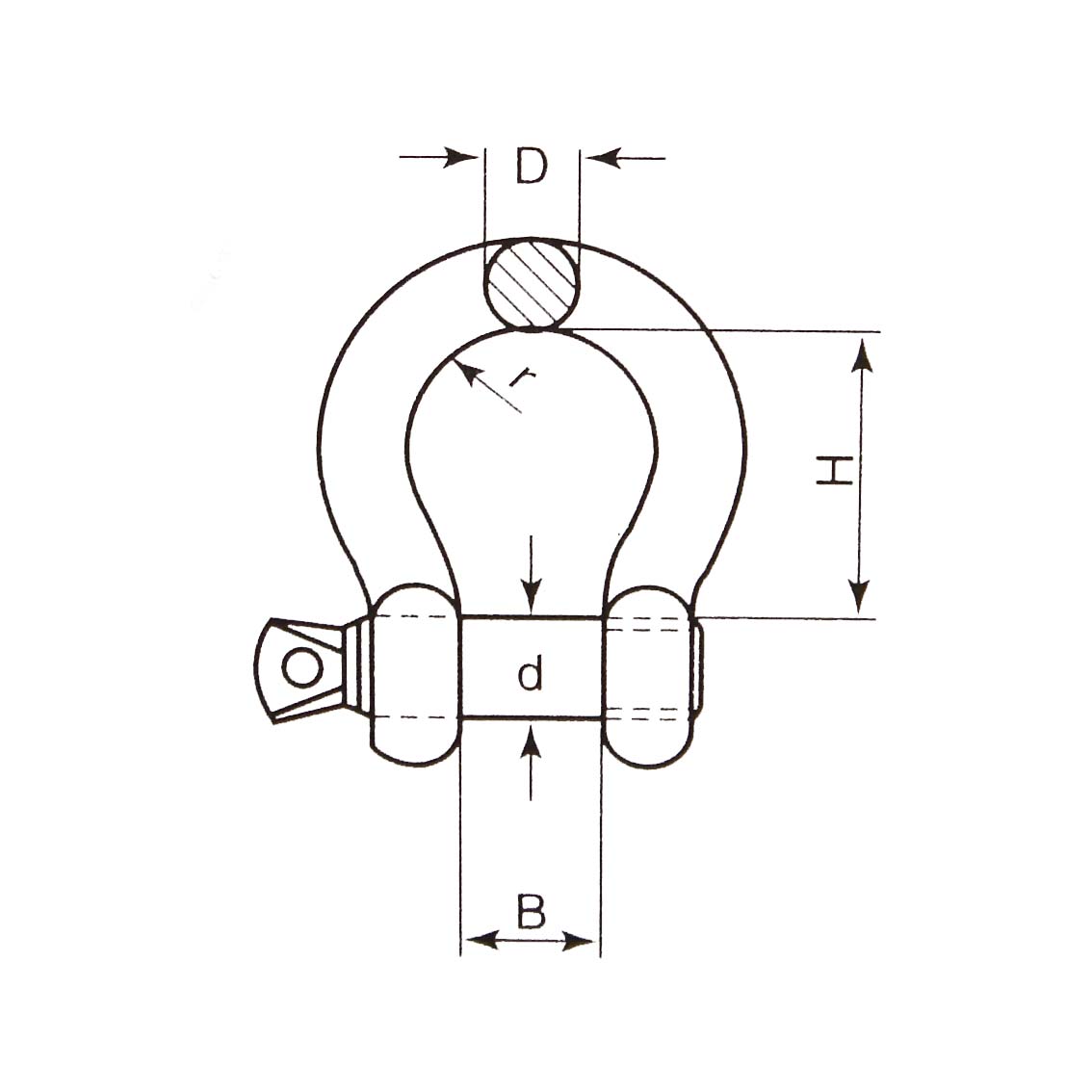

Bow Shackles
- Commercial - Not for Lifting
|
Part No. |
Size (mm) D |
d |
B |
H |
2r |
|
CRBOWS 5MM |
5 |
5 |
10 |
19.5 |
15 |
|
CRBOWS 6MM |
6 |
6 |
12 |
24 |
18 |
|
CRBOWS 8MM |
8 |
8 |
16 |
32 |
24 |
|
CRBOWS 10MM |
10 |
10 |
20 |
40 |
30 |
|
CRBOWS 11MM |
11 |
11 |
22 |
44.5 |
33 |
|
CRBOWS 12MM |
12 |
12 |
25 |
49 |
36 |
|
CRBOWS 16MM |
16 |
16 |
32 |
64 |
48 |
|
CRBOWS 19MM |
19 |
19 |
38 |
76 |
57 |
|
CRBOWS 22MM |
22 |
22 |
44 |
85 |
66 |
|
CRBOWS 25MM |
25 |
25 |
50 |
100 |
75 |
|
CRBOWS 28MM |
28 |
28 |
56 |
116 |
86 |
|
|
