Commercial Rigging |
Specifications |
|
 |
Bow Shackles
- Commercial - Not for Lifting
|

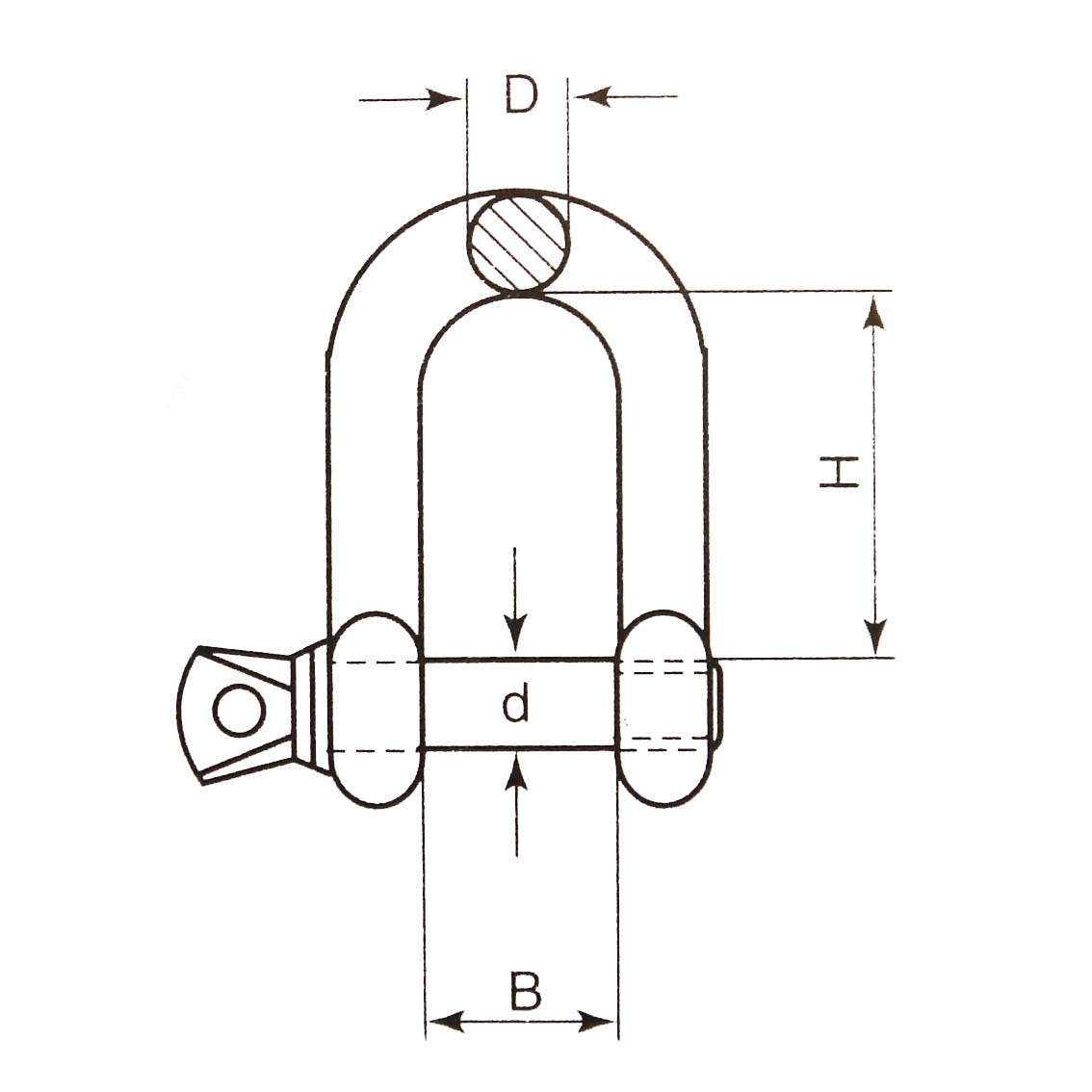

Part No. |
Size (mm) D |
d |
B |
H |
|
CRDEES 5MM
|
5 |
5 |
10 |
19 |
|
CRDEES 6MM
|
6 |
6 |
12 |
24 |
|
CRDEES 8MM
|
8 |
8 |
16 |
32 |
|
CRDEES 10MM
|
10 |
10 |
20 |
40 |
|
CRDEES 11MM
|
11 |
11 |
22 |
44 |
|
CRDEES 12MM
|
12 |
12 |
25 |
48 |
|
CRDEES 16MM
|
16 |
16 |
32 |
64 |
|
CRDEES 19MM
|
19 |
19 |
38 |
73 |
|
CRDEES 22MM
|
22 |
22 |
44 |
85 |
|
CRDEES 25MM
|
25 |
25 |
50 |
95 |
|
CRDEES 28MM
|
28 |
28 |
56 |
106 |
|
|
